Product Details:
Payment & Shipping Terms:
|
| Connector: | 8 X RJ45 | Optical Port: | 2 X 1000Base-X SFP |
|---|---|---|---|
| Power Consumption: | 8W Max | Mounting Options: | DIN-Rail Mount |
| One-Key Vlan: | Support | Ring Management: | Support |
| Highlight: | Managed Industrial Ethernet Media Converter,L2+ Industrial Ethernet Media Converter |
||

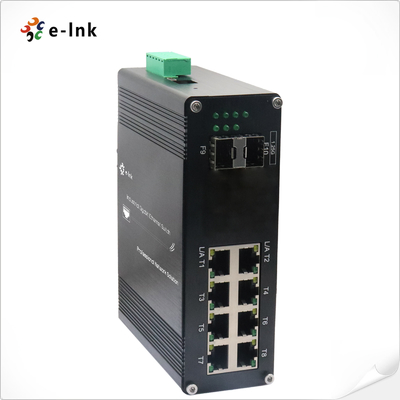

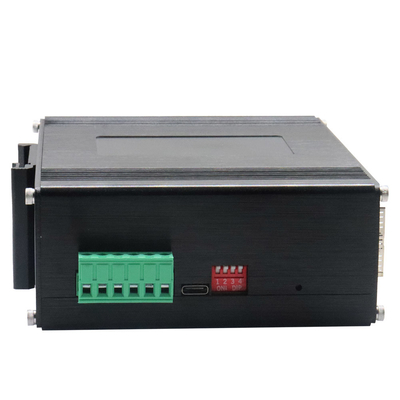

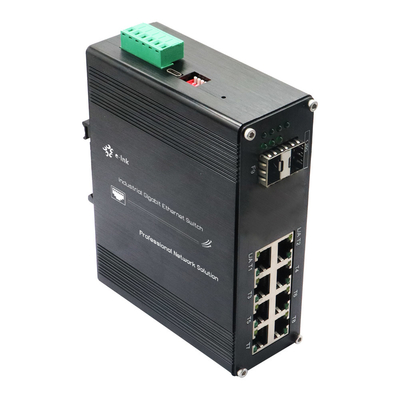

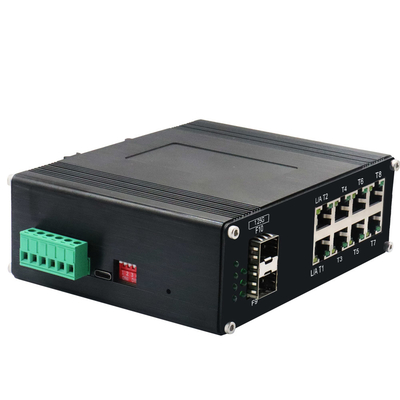

Industrial Ethernet Media Converter L2+ 8-Port 10/100/1000T + 2-Port 1000X SFP Managed Ethernet Switch
Industrial Ethernet Media Converter Advantages
► Support 8x10/100/1000Base-T + 2x1000Base-X SFP
► 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
► Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
► 9K Bytes Jumbo Frame
Industrial Ethernet Media Converter Technical Indexes
| Software Features | ||||
| Redundancy Protocols | Support STP/RSTP/MSTP/ERPSv2, Link Aggregation | |||
| Multicast Support | Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q | |||
| VLAN | Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN, | |||
| Time Management | SNTP | |||
| QOS |
Flow-based redirection Flow-based rate limiting |
|||
| ACL |
Port-based Issuing ACL ACL based on port and VLAN |
|||
| Diagnostic Maintenance | Support port mirroring, Syslog, Ping | |||
| Management Function | Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT | |||
| Alarm Management | Support 1 way relay alarm output, RMON, TRAP | |||
| Security |
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0 Support DHCP Snooping, Option 82,802.1X security access, |
|||
Industrial Ethernet Media Converter Overview
ETH-IMC208M series is the L2+ managed 8-port 10/100/1000Base-T + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports.
With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.
Ordering Information
| Model | Description | |
| ETH-IMC208M |
|
|
| SFP Options | ► SFP option. Please select your SFP on our SFP Options Page | |
| ► SFP module is to be purchased separately. |
